Launchpad¶

Usage¶

When to use¶

• Use a launchpad to give the user the possibility to launch apps or switch between apps easily within one application.

Best practices¶

• If there are a lot of apps, it's recommended for this component to include recently used apps, frequently used apps.
• If the list is a manageable size, include all apps or products available on the system.
• Allow users to manage the applications.
• Only use the launchpad for more than two apps.

Design¶

Elements¶

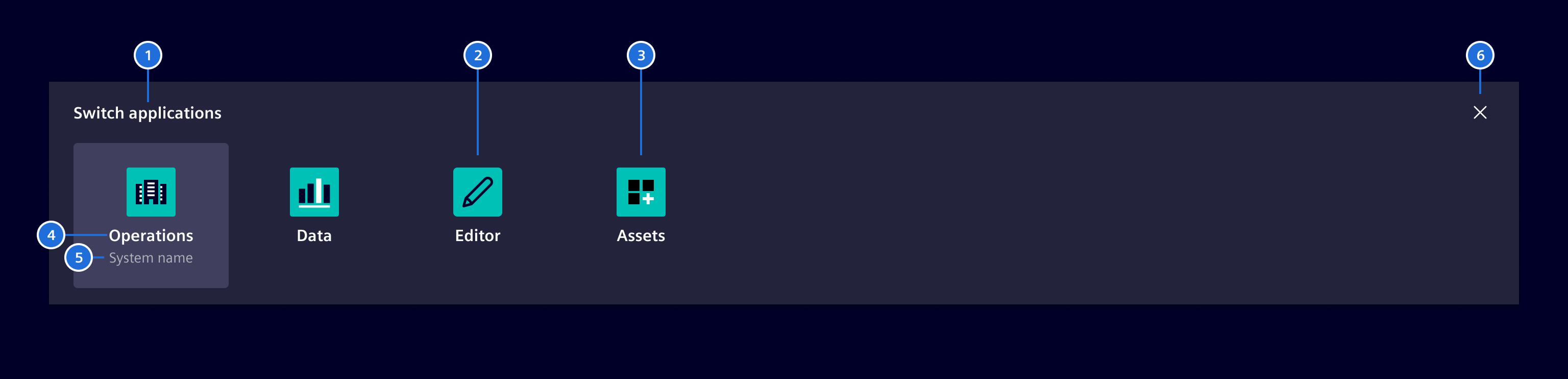

1. Title, 2. App with icon, 3. App with logo, 4. App name, 5. System name (optional), 6. Close

The app is represented by the app logo or alternatively by an icon.

States¶

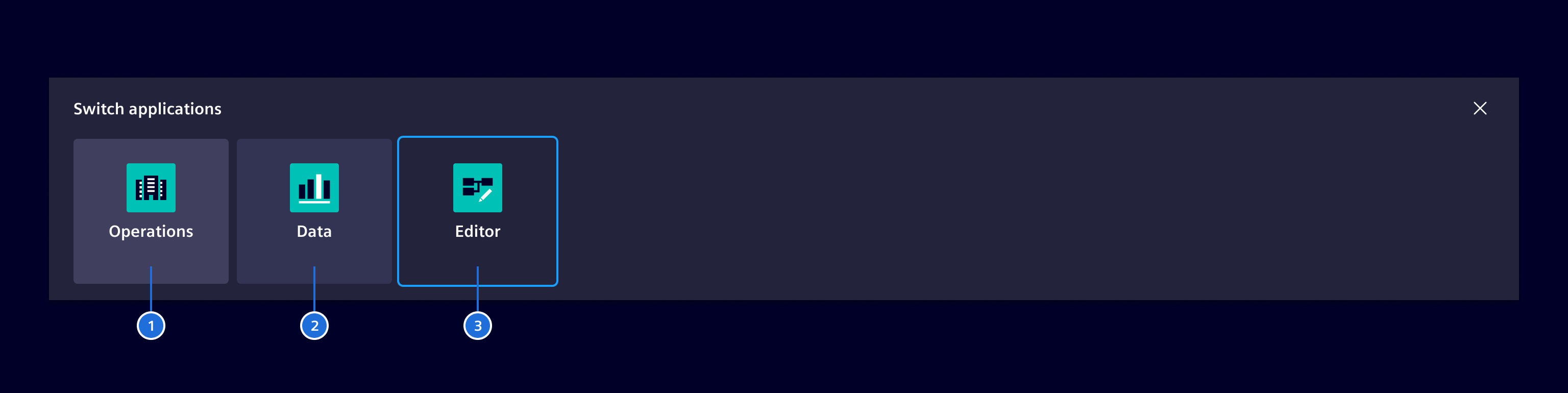

1. Current app, 2. Hover state, 3. Focused

Categories (optional)¶

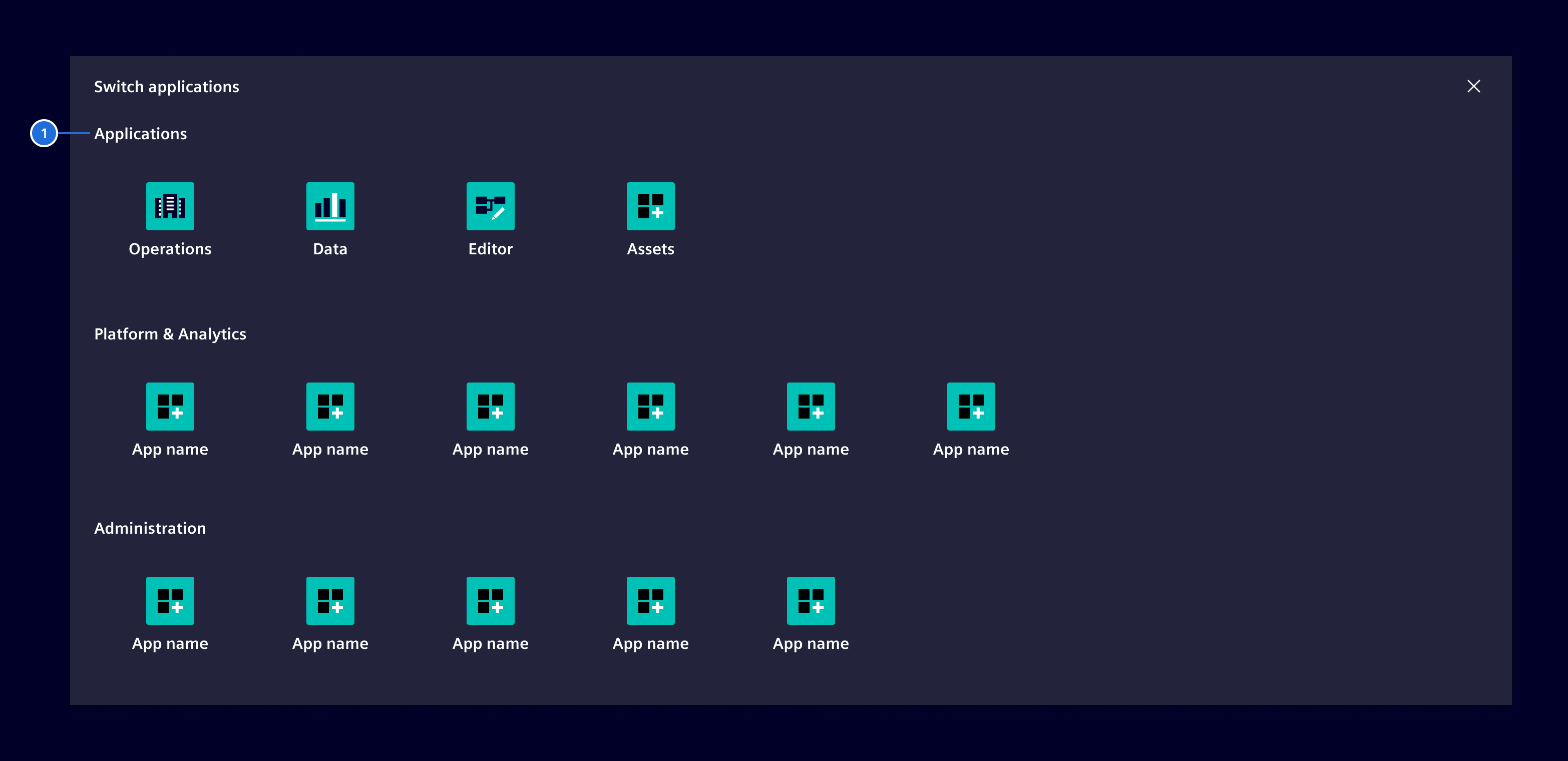

1. Category title

If there is a large number of applications it is possible to organize and group them for a better overview. Apps should be grouped in a logical and meaningful way.

Favorites (optional)¶

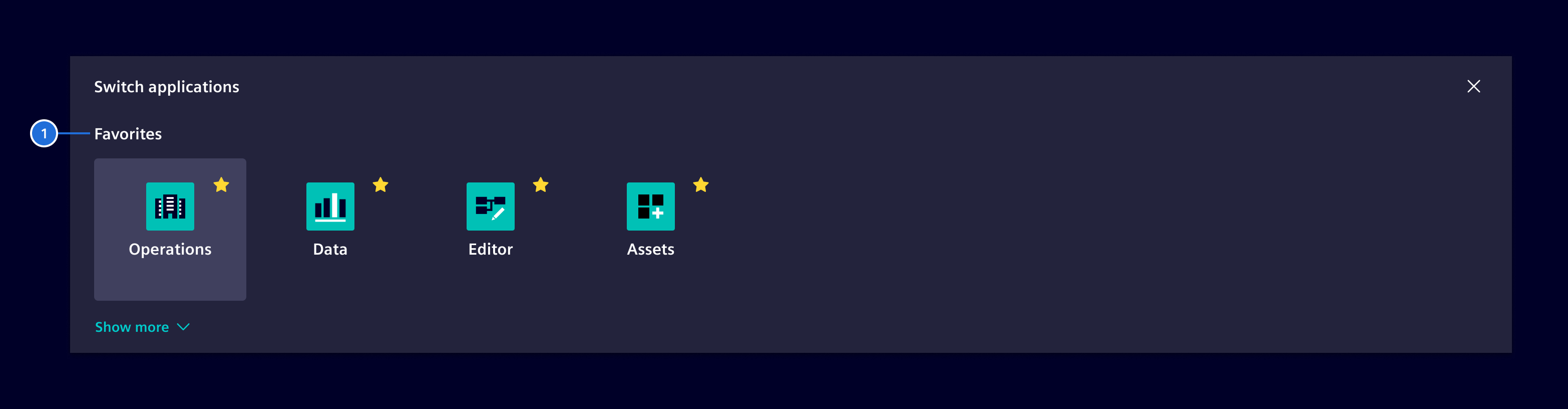

For a better overview, the concept of favorites allows the user to only show the most important apps at a glance and to hide less frequent used ones.

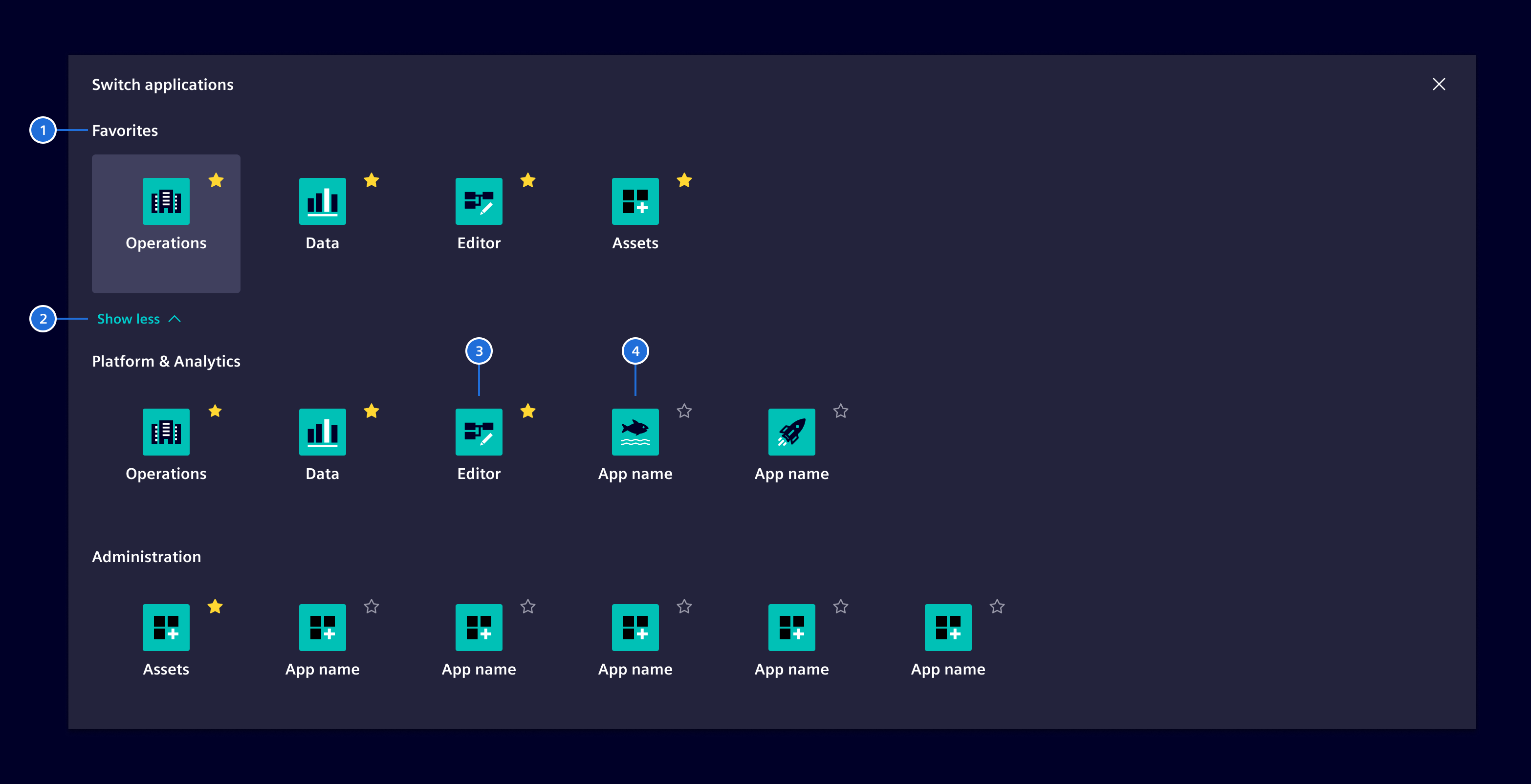

1. Title, 2. Expand/Collapse-toggle, 3. Favorite app, 4. Standard app

In the expanded view, the user can click on the star-icon to mark the app as a favorite one. The app will then be part of the favorite apps category. To unstar an app the user simply clicks on the star-icon again.

Both concepts of Categories and Favorites can be mixed if necessary.

Open app in separate tab (optional)¶

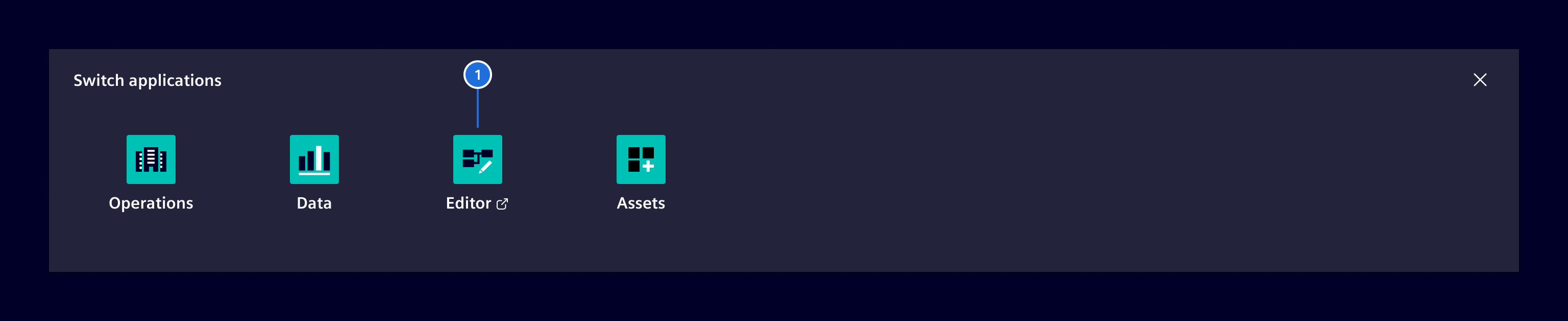

1. Open app in separate tab

Apps opening in a separate tab must be marked by an additional element-export icon. The original tab remains open to allow a fast and easy return to the current app.

Responsive behavior¶

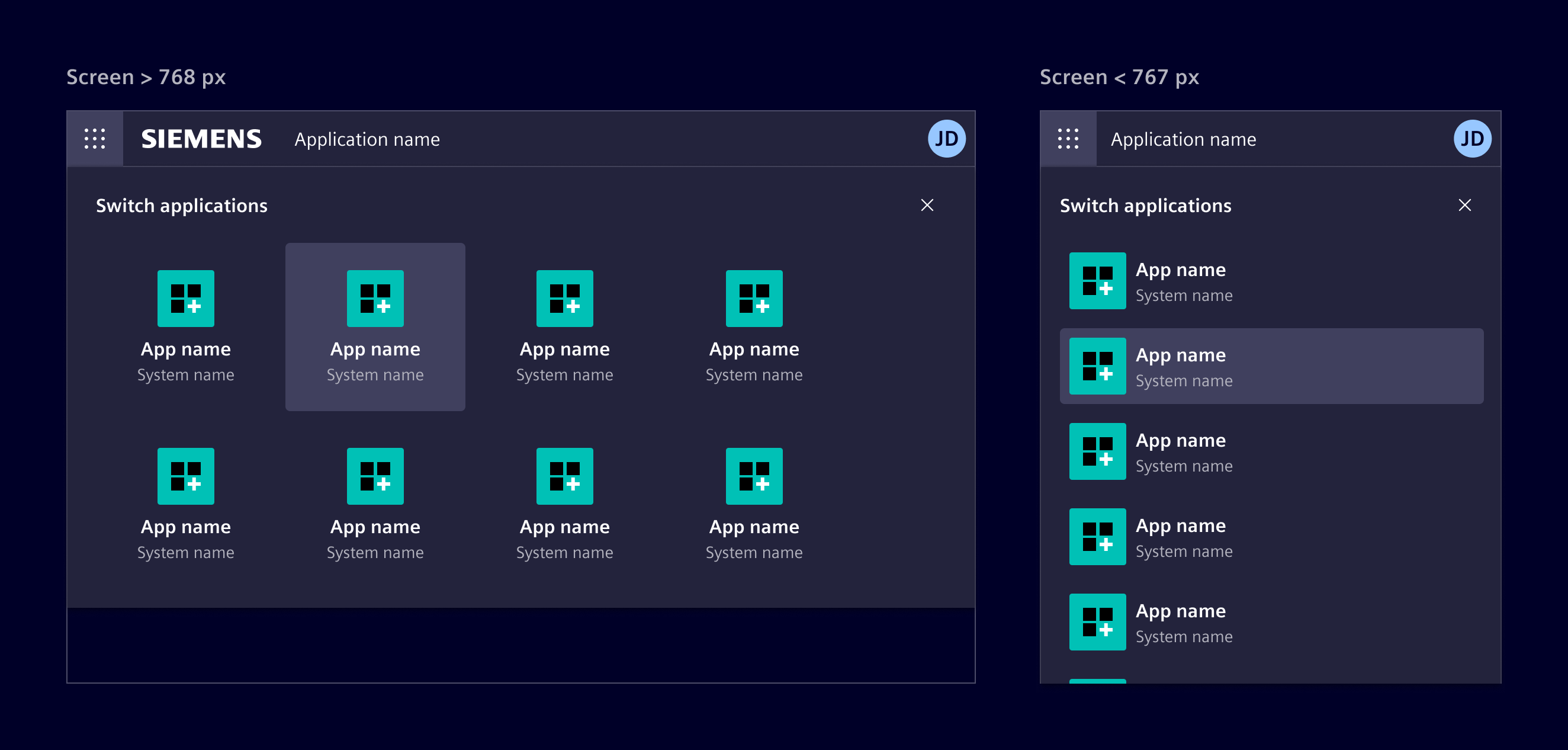

By decreasing the viewport size the apps within the launchpad will be stacked. For screen sizes <768px (sm and xs), the layout switches to a vertical list.

Code¶

The launchpad (si-launchpad-factory) ist part of the application header.

Wrap it inside a ng-template and provide the template to the si-application-header component.

<si-application-header [launchpad]="launchpad"> ... </si-application-header>

<ng-template #launchpad>
  <si-launchpad-factory [apps]="myAppsOrCategories" />
</ng-template>

Example¶

SiLaunchpadFactoryComponent API Documentation¶

Input Properties¶

Name	Type	Default	Description
apps ¶	(App[] | AppCategory[])		All app items shown in the launchpad.
closeText ¶	TranslatableString	$localize`:@@SI_LAUNCHPAD.CLOSE:Close launchpad`	Text to close the launchpad. Needed for a11y.
enableFavorites ¶	boolean	false	Allow the user to select favorite apps which will then be displayed at the top.
favoriteAppsText ¶	TranslatableString	$localize`:@@SI_LAUNCHPAD.FAVORITE_APPS:Favorites`	Title of the favorite apps section.
showLessAppsText ¶	TranslatableString	$localize`:@@SI_LAUNCHPAD.SHOW_LESS:Show less`	Title of the show less apps button.
showMoreAppsText ¶	TranslatableString	$localize`:@@SI_LAUNCHPAD.SHOW_MORE:Show more`	Title of the show more apps button.
subtitleText ¶	TranslatableString		Subtitle of the launchpad. When not provided, no subtitle is displayed.
titleText ¶	TranslatableString	$localize`:@@SI_LAUNCHPAD.TITLE:Switch applications`	Title of the launchpad.

Output Properties¶

Types Documentation¶
