Switch¶

Usage¶

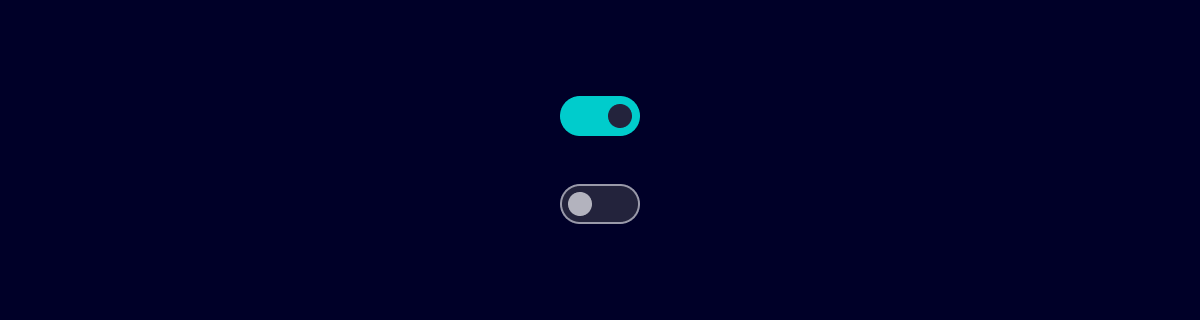

Switches immediately trigger an effect when being clicked. Examples are: On/Off, Online/Offline or Installed/Not installed.

When to use¶

• When there is a binary state that the user should be able to toggle instantly.

Best practices¶

• Use a stable label that describes the setting being controlled, not the action or current state.
• Let the switch communicate its state. Additional text such as On or Off may be displayed when explicit state information is needed.
• Do not change the label when the switch state changes.
• Switches apply changes immediately and must not require an additional submit button.

Design¶

Anatomy¶

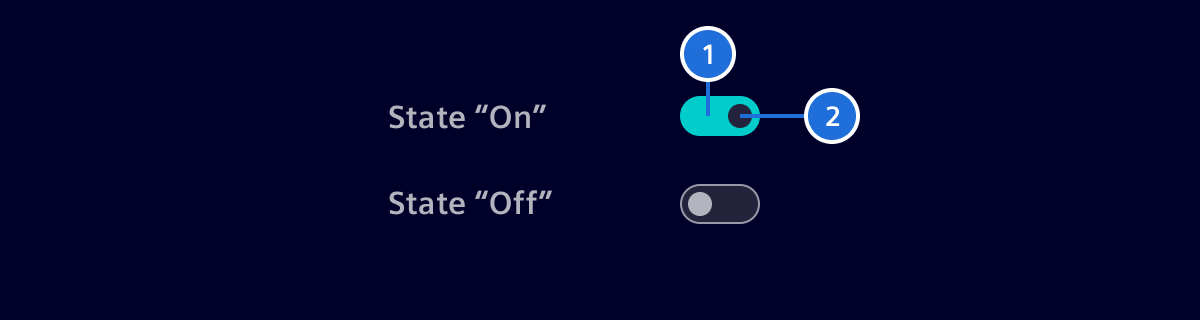

1. Background, 2. Thumb

Thumb position¶

• On: Positioned on the right.
• Off: Positioned on the left.
• Indeterminate: Positioned in the center. Used when multiple values have mixed states or when the setting has no defined value. Selecting the switch resolves it to On or Off.

Code¶

In Element, switches are native <input type="checkbox"> elements with extra styling. They should be used together with the si-form-item component (see here).

A checkbox is turned into a switch by applying the form-switch class to the si-form-item component:

<si-form-item label="Switch" class="form-switch">
  <input type="checkbox" class="form-check-input" [formControl]="control" />
</si-form-item>

The class form-check-input and type="checkbox" must be applied to ensure correct visual appearance. Instead of formControl, you can also use ngModel.

Group switches¶

Use the si-form-fieldset component to group multiple switches together. It will ensure a correct layout and apply the necessary accessibility attributes.

<si-form-fieldset label="Group">
  <si-form-item label="Option 1" class="form-switch">
    <input type="checkbox" class="form-check-input" [formControl]="control1" />
  </si-form-item>
  <si-form-item label="Option 2">
    <input type="checkbox" class="form-check-input" [formControl]="control2" />
  </si-form-item>
</si-form-fieldset>

By default, the switches are stacked vertically. To display them inline, apply the form-check-inline class to the si-form-item:

<si-form-fieldset label="Group Inline">
  <si-form-item label="Option 1" class="form-check-inline form-switch">
    <input type="checkbox" class="form-check-input" [formControl]="control1" />
  </si-form-item>
  <si-form-item label="Option 2" class="form-check-inline form-switch">
    <input type="checkbox" class="form-check-input" [formControl]="control2" />
  </si-form-item>
</si-form-fieldset>

Native HTML markup¶

If a si-form-item component cannot be used, it is also possible to use a switch with native HTML elements only:

<div class="form-check mb-2 form-switch">
  <input type="checkbox" id="check-id" class="form-check-input" />
  <label for="check-id" class="form-check-label">Switch</label>
</div>

In this case, all the attributes shown above must be set by an application. Otherwise, the switch may appear broken.

To create an inline switch, additionally apply the form-check-inline class to the form-check div.

Example¶
