Markdown¶

Usage¶

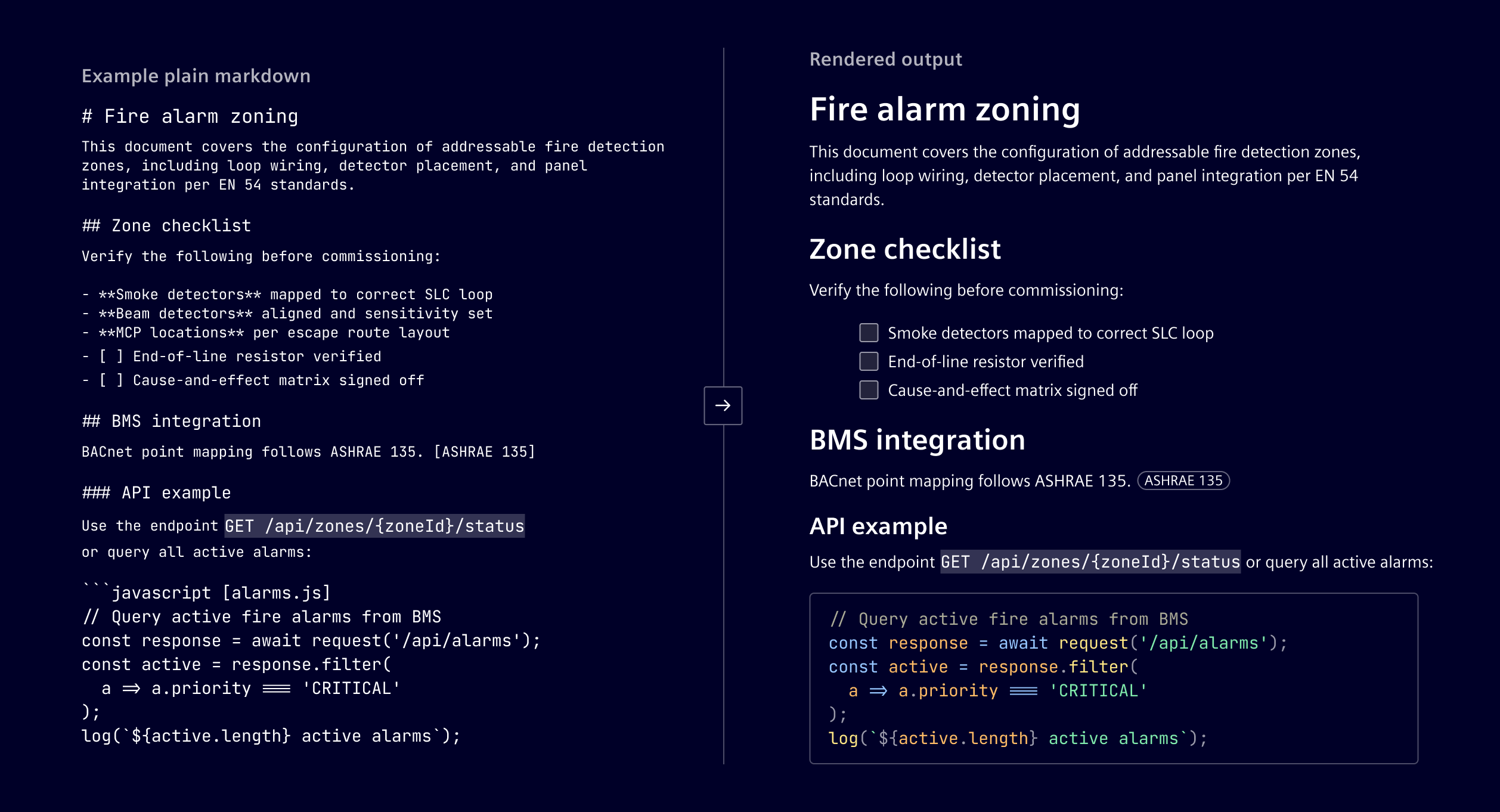

Markdown is a plain text formatting syntax where structure is written with ordinary characters: # for a heading, **text** for bold, - for a list item, etc.

The component maps these elements to Element text styles and spacing, ensuring rendered content is consistent with the rest of the product.

Optional features such as syntax highlighting, diagrams, math, and custom renderers can be enabled when needed.

When to use¶

• For AI/chat responses
• Rich text from users, such as comments, descriptions, and documentation
• For generated content such as reports, summaries, instructions, and release notes
• Imported Markdown content, such as .md files or Markdown based documentation

Code¶

Note: The markdown component is currently experimental and may undergo changes in future releases.

The si-markdown component renders Markdown content as Angular components. Use its options to configure extensions, code highlighting, and custom rendering behavior. Options can, and where possible should, be shared between multiple component instances.

Create the options once and pass the same instance to each si-markdown component that needs the configuration. The component supports GitHub Flavored Markdown by default, including tables, task lists, strikethrough, and autolinked URLs.

import { Component, signal } from '@angular/core';
import { makeSiMarkdownOptions, SiMarkdownComponent } from '@siemens/element-ng/markdown';
import { siMarkdownMathKaTeX } from '@siemens/element-ng/markdown/extensions/katex';
import { siMarkdownMermaid } from '@siemens/element-ng/markdown/extensions/mermaid';
import { siMarkdownHighlightJs } from '@siemens/element-ng/markdown/hightlighter/highlightjs';
import remarkGemoji from 'remark-gemoji';

@Component({
  imports: [SiMarkdownComponent],
  template: ` <si-markdown [markdown]="markdown()" [options]="markdownOptions" /> `
})
export class MarkdownExampleComponent {
  protected readonly markdown = signal('# Release notes');
  protected readonly markdownOptions = makeSiMarkdownOptions()
    .setCodeHighlighter(siMarkdownHighlightJs({ autoDetectLanguage: true }))
    .installExtension(siMarkdownMathKaTeX())
    .installExtension(siMarkdownMermaid())
    .installUnifiedPlugin(remarkGemoji);
}

Code highlighting¶

Configure syntax highlighting for fenced code blocks with siMarkdownHighlightJs() and .setCodeHighlighter(). The highlighter includes JavaScript, TypeScript, JSON, CSS, SCSS, Bash, Python, and XML languages (also HTML) by default.

Use languageLoader to load other languages only when a code block requests them. The loader receives the language name from the fence and returns the corresponding Highlight.js language module. Return undefined for languages your application does not support.

import {
  siMarkdownHighlightJs,
  type HighlightJSLanguageImport
} from '@siemens/element-ng/markdown/hightlighter/highlightjs';

const highlightJsLanguageLoader = async (language: string): HighlightJSLanguageImport => {
  switch (language) {
    case 'c':
      return import('highlight.js/lib/languages/c');
    case 'cpp':
      return import('highlight.js/lib/languages/cpp');
    case 'yaml':
      return import('highlight.js/lib/languages/yaml');
    default:
      return undefined;
  }
};

protected readonly markdownOptions = makeSiMarkdownOptions().setCodeHighlighter(
  siMarkdownHighlightJs({ languageLoader: highlightJsLanguageLoader })
);

When autoDetectLanguage is enabled, Highlight.js can only detect languages that have already been registered; it does not invoke languageLoader. Eagerly register every language you want to auto-detect, following the built-in language registration used by the Highlight.js component:

import hljs from 'highlight.js/lib/core';
import langYaml from 'highlight.js/lib/languages/yaml';

hljs.registerLanguage('yaml', langYaml);

protected readonly markdownOptions = makeSiMarkdownOptions().setCodeHighlighter(
  siMarkdownHighlightJs({ autoDetectLanguage: true })
);

Extensions¶

The following rendering support is included in every Markdown component:

Optional integrations are configured through SiMarkdownOptions:

You can also add a compatible unified or remark plugin with .installUnifiedPlugin(plugin, options). This is useful for syntax that is not covered by the Element integrations, such as emoji shortcodes.

Bundle size: KaTeX, Mermaid, Highlight.js, and additional unified plugins increase the application bundle size. Import and configure only the integrations your Markdown content requires.

Directives¶

Directives add named, component-backed elements to Markdown. The renderer supports the directive syntax provided by remark-directive: inline directives use :name[label]{attributes}, leaf directives use ::name{attributes}, and container directives wrap Markdown content with matching colon fences, at least three colons.

:::name{attribute=value attribute2=value2}
Normal **Markdown** content.
:::

Register a directive handler with registerDirective(). A handler maps a directive name to an Angular component that implements SiMarkdownExtensionComponent; that component receives the parsed directive node, its parent, and any registered options as signal inputs.

Example:

::notice{message="Scheduled maintenance starts at 22:00."}

import { Component, input } from '@angular/core';
import {
  makeSiMarkdownOptions,
  type SiMarkdownDirectiveNode,
  type SiMarkdownExtensionComponent
} from '@siemens/element-ng/markdown';
import { type Node, type Parent } from 'mdast';

@Component({
  selector: 'si-markdown-notice',
  template: '<div class="notice">{{ node().attributes.message }}</div>'
})
class MarkdownNoticeComponent implements SiMarkdownExtensionComponent {
  readonly node = input.required<SiMarkdownDirectiveNode>();
  readonly parent = input.required<Parent>();
  readonly options = input<unknown>();
}

protected readonly markdownOptions = makeSiMarkdownOptions().registerDirective({
  type: 'notice',
  component: MarkdownNoticeComponent
});

Callout¶

The callout container directive is integrated by default. Use its optional type attribute to choose a visual severity: success, info, warning, danger, caution, critical, note, or tip. note is the default.

:::callout{type=warning heading="Optional heading"}
This action cannot be undone.
:::

Tabs¶

The tabset directive is an opt-in directive that adds Element tabset. Register siMarkdownTabsetDirective() to enable the tabset container directive. Its child tab directives map to si-tab; only their heading attribute is used. Use a longer fence for the outer tabset when nesting tab directives.

import { makeSiMarkdownOptions } from '@siemens/element-ng/markdown';
import { siMarkdownTabsetDirective } from '@siemens/element-ng/markdown/directives/tabs';

protected readonly markdownOptions = makeSiMarkdownOptions().registerDirective(
  siMarkdownTabsetDirective()
);

::::tabset{height=12rem}
:::tab{heading="First tab"}
First tab content.
:::

:::tab{heading="Second tab"}
Second tab content.
:::
::::

Supported attribute on ::::tabset is height. It can be any CSS length unit or auto to take up the space needed for the active tab.

Custom extension¶

An extension can install unified plugin(s) and associate the AST node types produced by that plugin with Angular renderer components. As an example, the following provides an alternative to render LaTeX math expressions. Instead of using KaTeX it uses @webc.site/math. This package is smaller and faster than KaTeX, but can only produce MathML (supported by all major browsers). It is distributed under the MulanPSL-2.0, an OSI approved liberal license.

import remarkMath, { type Options } from 'remark-math';

import { SiMarkdownExtension } from '../../si-markdown.types';
import { SiMarkdownMathComponent } from './si-markdown-math.component';

export const siMarkdownWebcSiteMath = (parseOptions?: Options): SiMarkdownExtension => {
  return {
    plugins: [{ plugin: remarkMath, options: parseOptions }],
    types: [
      { type: 'math', component: SiMarkdownMathComponent },
      { type: 'inlineMath', component: SiMarkdownMathComponent }
    ]
  };
};

The renderer implements SiMarkdownExtensionComponent. Element supplies the parsed node, its parent, and the options provided in the extension definition as signal inputs.

import { Component, computed, inject, input } from '@angular/core';
import { DomSanitizer } from '@angular/platform-browser';
import mathml from '@webc.site/math';
import { Literal, type Node, type Parent } from 'mdast';

import { SiMarkdownExtensionComponent } from '../../si-markdown.types';

@Component({
  selector: 'si-markdown-math',
  template: '',
  host: {
    '[attr.data-line]': 'node().position?.start?.line',
    '[class.d-block]': 'displayMode()',
    '[innerHTML]': 'html()'
  }
})
export class SiMarkdownMathComponent implements SiMarkdownExtensionComponent {
  private readonly sanitizer = inject(DomSanitizer);

  readonly node = input.required<Node>();
  readonly parent = input.required<Parent>();
  readonly options = input<any>();

  protected readonly displayMode = computed(() => this.node().type === 'math');
  protected readonly html = computed(() => {
    const expr = (this.node() as Literal).value;
    const html = mathml(expr, this.displayMode());
    return this.sanitizer.bypassSecurityTrustHtml(html);
  });
}

Register the extension with the component options:

protected readonly markdownOptions = makeSiMarkdownOptions().installExtension(siMarkdownWebcSiteMath());

Example¶

SiMarkdownComponent API Documentation¶

Component to display markdown text

This component is built using concepts from ngx-remark, namely using Angular templates to render the AST produced by remark .

Unlike ngx-remark , it features a configuration based approach of extensibility so that multiple instances of the component can be used with the same configuration, e.g. inside a chat component w/o repeating templates.

Input Properties¶

Output Properties¶

Attributes and Methods¶

Types Documentation¶

import { siMarkdownMathKaTeX } from '@siemens/element-ng/markdown/extensions/math';
import remarkGemoji from 'remark-gemoji';

protected markdownOptions = new SiMarkdownOptions()
  .installExtension(siMarkdownMathKaTeX())
  .installUnifiedPlugin(remarkGemoji);

<si-markdown [markdown]="markdownText()" [options]="markdownOptions" />
