Maps¶

Usage¶

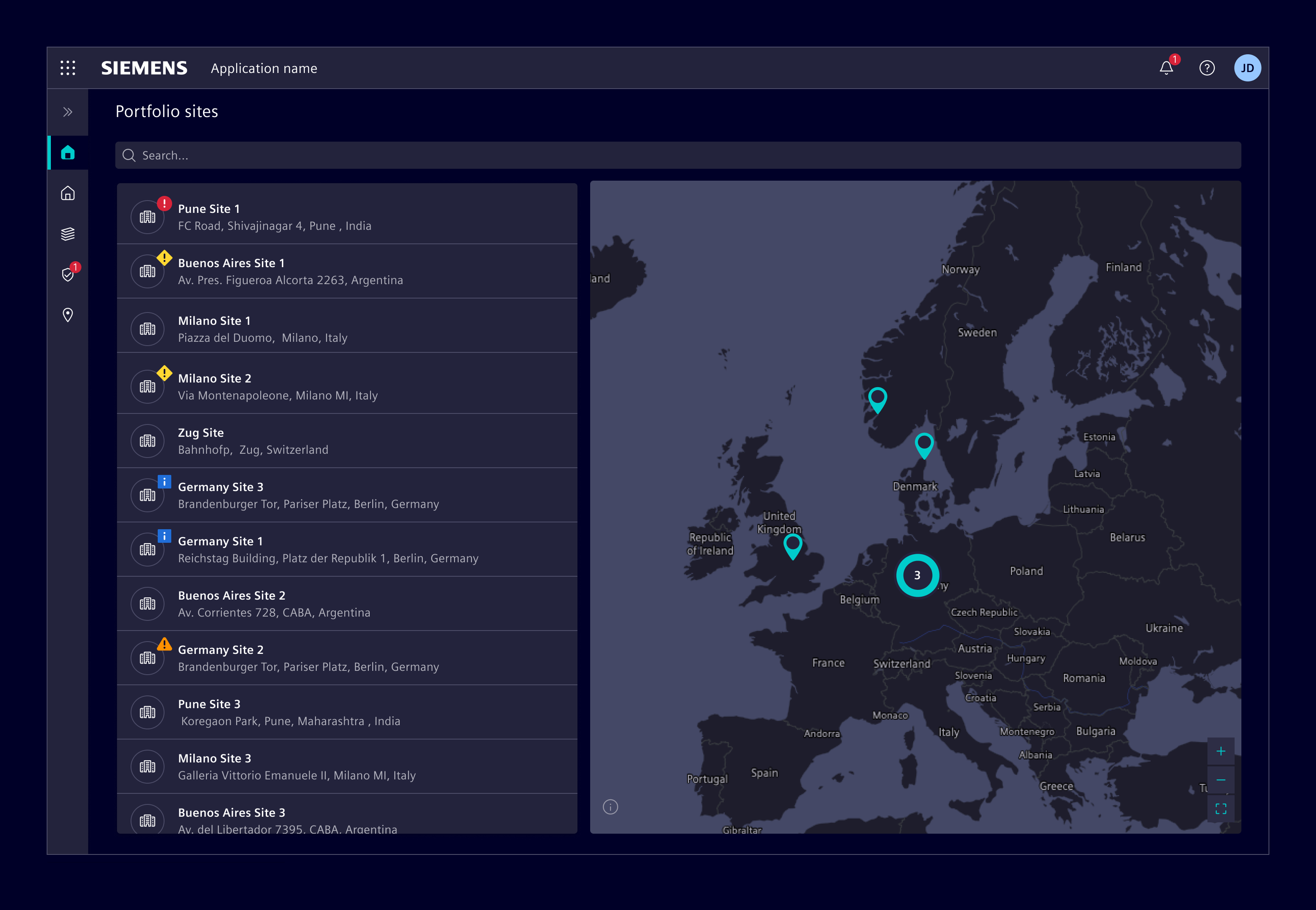

Interactive maps allow users to select locations, pan, and zoom to obtain further information.

Element supports two implementation options:

• Element Maps: a ready-to-use, high-level Angular component based on OpenLayers, with built-in points, grouping, clusters, labels, tooltips, and popovers.
• MapLibre: a direct integration with @maplibre/ngx-maplibre-gl, complemented by Element control styles, theme-aware map styles, and translations.

When to use¶

• Use it when users need to manage a large number of geographically dispersed locations.
• Use it to provide an overview of the current status of all locations.
• Use it to help users understand the surroundings of a specific location, such as a site or building.
• Maps are particularly useful for users who need to physically visit a location, such as facility managers.

Best practices¶

• Maps require a large amount of screen space to be readable. If space is limited, provide options to expand, collapse, or hide the map.
• If a specific location is not the focus of the displayed information, a map might not provide additional value. A textual representation of the address is more efficient.
• Limit the number of map actions, such as zoom and find my location, to five.

Design¶

Elements¶

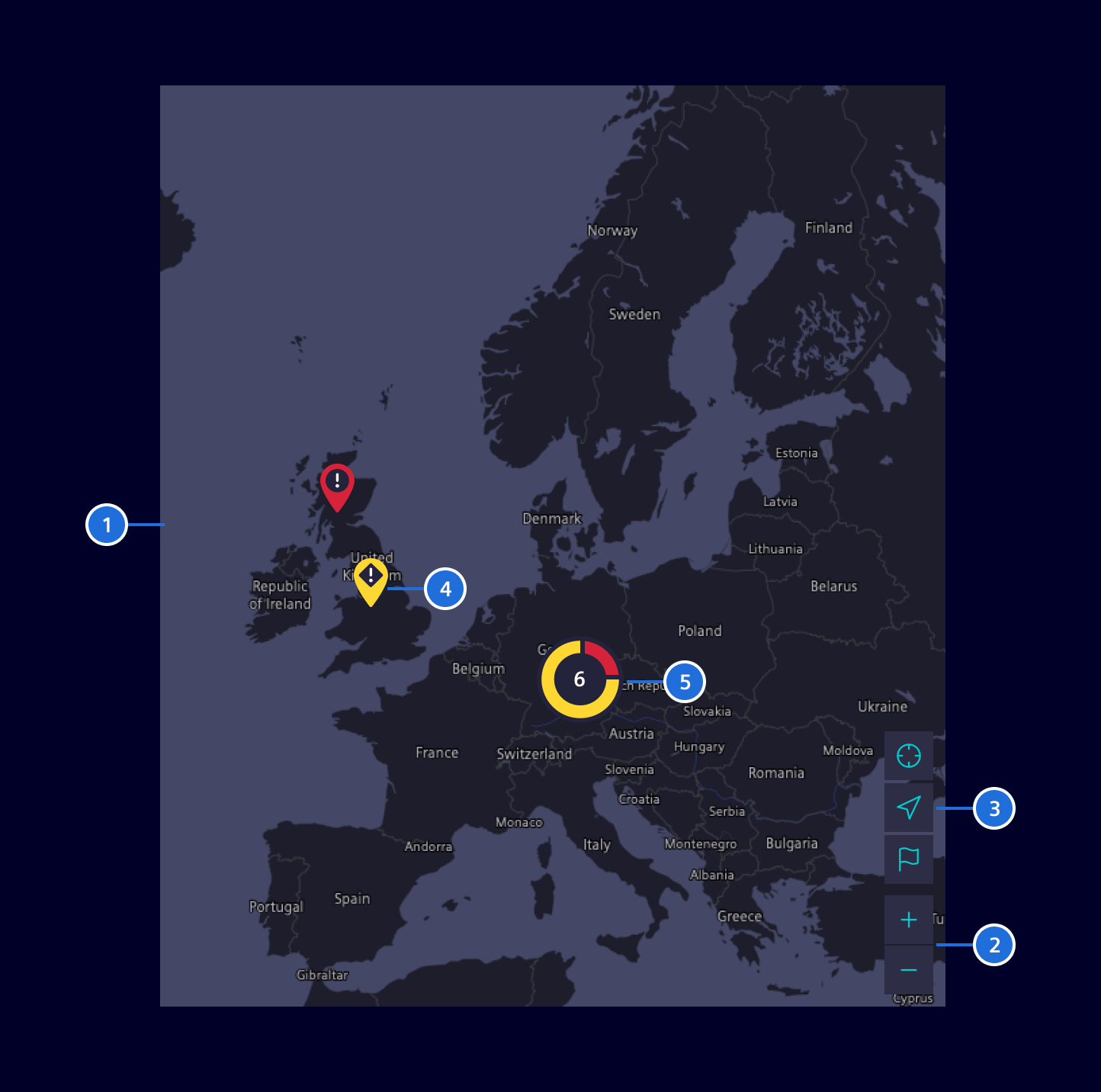

1. Map, 2. Zoom actions, 3. Additional actions (optional), 4. Map pin, 5. Grouped locations

Location representation¶

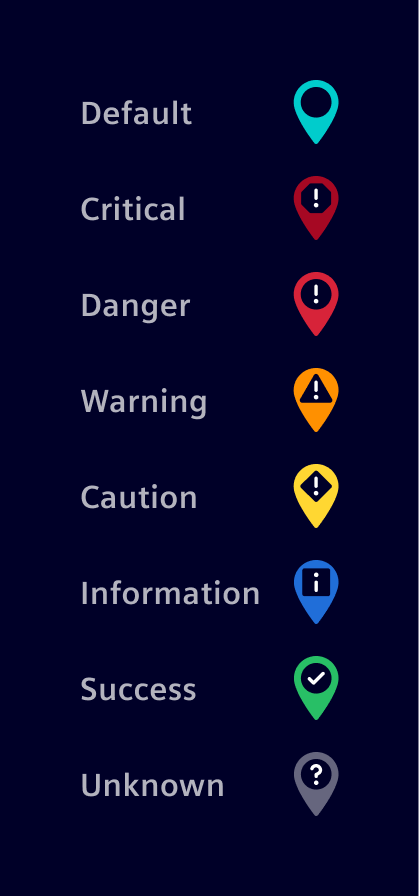

A map pin represents a single location. Map pins can also represent different statuses. Avoid mixing the status color palette with the default color.

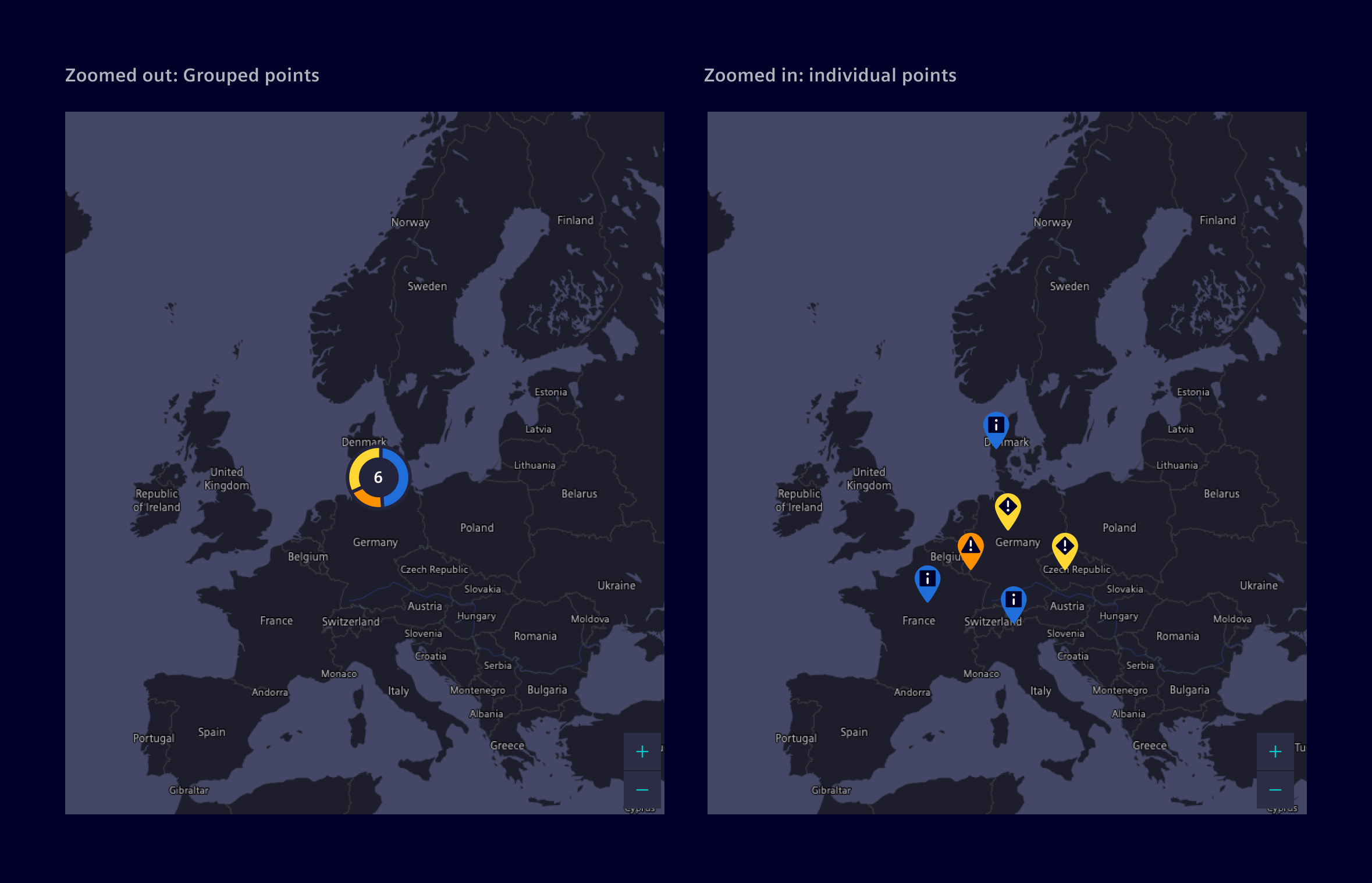

When locations are geographically close, cluster them in a donut chart to visualize their locations and statuses efficiently. When users zoom in, display the locations as individual map pins to provide a more accurate view.

The number represents the amount of locations grouped in the chart. The size of each slice indicates the relative number of locations in a specific state.
